UPF INTEGRATED TANK & BODY

Integrated Tank and Poly Fire Truck Body

Manufactured for nearly twenty years, the Integrator™ combines the UPF Poly-Tank with a poly fire truck body. The Integrator™ poly fire truck tanks and poly fire rescue truck bodies are manufactured independently, then joined together to provide one integrated unit. Because weighing less than conventional bodies, the Integrator™ poly fire truck body is proven to be less wear on a chassis and is a durable poly fire truck body and tank that will last a lifetime. In addition, this fire tanker body and the tank are maintenance-free, resist dents and dings, and never rust or corrode.

Furthermore, you can order our single axle, tandem axle tanker, pumper, and fire rescue truck bodies in many different configurations to suit your needs. The Integrator™ PolySide® and Poly-Body® are custom units with capacities ranging from 100 to 4,000 gallons and provide no shortage of options. Options available but not limited to are wheel chock compartments, SCBA storage cut-outs, and poly tubes. Learn more about our fire apparatus storage solutions.

The Integrator™ is a Great Replacement Fire Tanker Body and Tank

Each PolyBody® and PolySide® integrated unit can be purchased directly or by your fire truck manufacturer or dealer. However, the UPF Integrator poly fire truck body and tank make for a great do-it-yourself replacement for an old rusted fire tanker or rescue truck. In addition, these poly fire truck tanks and fire rescue truck bodies can be painted with automotive paint and have a simple, effective mounting system. Additionally, UPF also offers custom Rescue Bodies.

Like all UPF poly fire truck tanks, the Integrator™ complies with NFPA guidelines. In conclusion, to request a quote, please supply the following information:

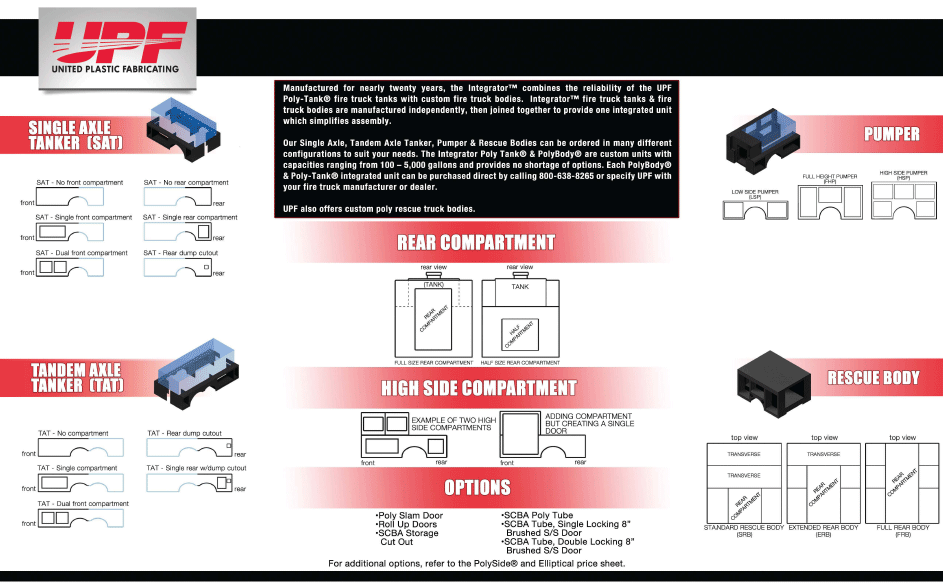

Multiple poly fire truck body compartments and configurations.

  • Wheel Chock Compartment
  • Roll-up Doors
  • Storage Cut Out SCBA
  • Poly Tube SCBA
  • SCBA Tube, Single Locking 8” Brushed S/S Door
  • SCBA Tube, Double, Locking 8” Brushed S/S Door

Poly Fire Fighting Tanks Options

  • Foam Cell(s)
  • Level Gauge /Meter drill and tap up to ¾” female NPT
  • Level gauge hole with 4 mounting holes (vertical tube type sensor)
  • Sight Gauge
  • Sight Tube
  • Tank Fill, Extended Internally to next compartment. (No diffuser)
  • Up to 3” (with basket-type diffuser) Tank Fill, Additional
  • Female NPT connection (with perforated pipe diffuser) Tank Fill, Additional 4.”
  • 4″, 5″ or 6” Bolted flange (with perforated pipe diffuser) Tank Fill, Additional
  • Tank Drain, Additional (female NPT)
  • Tank Suction, Additional
  • Sump, Additional
  • Sump greater than 144 sq inches
  • Additional 6″ Vent/Overflow
  • 8″ Vent/Overflow
  • 10″ Vent/Overflow
  • Sleeve up to 6″ per foot
  • 8″ per foot – Sleeve
  • 10″ per foot – Sleeve
  • Up to 6″ per foot – Angled Sleeve
  • 8″ per foot – Angled Sleeve
  • 10″ per foot – Angled Sleeve
  • Sleeve Through Foam Cell
  • Tank Mounting Block 3 Hole
  • Notch 10 cubic feet or less
  • Notch over 10 cubic ft.
  • Hi-Lo Notch, per cubic ft.
  • Mounting Block, Miscellaneous
  • Thru Tank by ft^3 Tunnel
  • Insert- Basic Tunnel
  • Complex Tunnel Insert (consult UPF for details)
  • Vent Valve- 2″ Gits
  • Foam Suction w/ Dip tube
  • Dump Block 10″ (Newton)
  • Dump Block ANSI 150 lb. Bolt Pattern 8”,10″ or 12”
  • Dump Block EJ Metals Thru-Hole Bolt Pattern 8”,10″ or 12”
  • Betts Bolt Pattern Block for fill or suction
  • Dump Block Extension
  • Sump for Dump (Each dump outlet)
  • Dump Distribution Box
  • Fill, Fireman’s Friend bolt pattern (No diffuser) 6 or 8 hole
  • Jet Line
  • Basic Conduit per ft.
  • Complex Conduit per ft.
  • Anti-Surge Tower
  • Material Thickness upgrade 3/4 to 1” per sq. ft.
  • Tank Suction pipe extended internally (IATS) beyond 36.”
  • Tank Fill extended internally beyond 36.”
  • Textured Material (NC) Not recommended if the tank is being painted.
  • Radius Edges – up to 10” high, Hose bed wall (Separate panel welded to tank top)
  • Radius Edges – up to 10″ Hose bed wall (Extended Tank Sidewall)
  • ¾” Pipe welded to edge of panel up to 12″ Hose bed wall (Separate panel welded to tank)
  • ¾” Pipe welded to the edge of panel up to 12″ Hose bed wall (Extended Tank Sidewall)
  • Inverted “J” up to 15″
  • Double Wall up to 20″
  • Hose bed, grooved cover per ft^2
  • Divider, hose bed – up to 10.”
  • Divider, Hose bed, with ¾” pipe welded to the edge – up to 12.”
  • Light Cutouts in hose bed wall
  • LightBox – Plastic (welded to tank / per box)
  • Reel Blocks (2) (Up to 57.5″)
  • Camera Box
  • Material upgrade 3/4 to 1” per sqft.

UPF Poly Fire Truck Tanks Warranty

For normal fire department applications, the tank shall have a limited lifetime warranty that provides warranty service for the life of the fire apparatus where the tank is. Also, warranties are transferable if the apparatus ownership changes by requesting the transfer from UPF. In applications where the tank will be subject to severe conditions, the tank may have a warranty unique to the application clearly defined for each such application. Also, you can learn more about our warranty here or get a copy of the UPF warranty by e-mailing us at [email protected].
